1965 Corvair MainBodyWiringHarness Diagram

[CorsaCharlie]

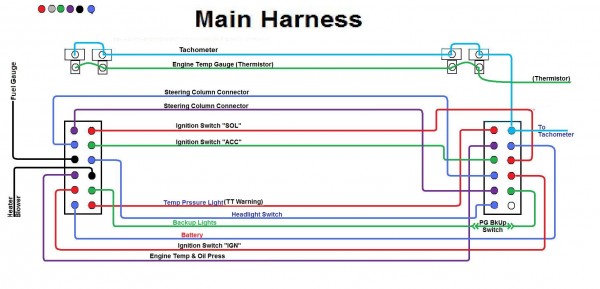

I mapped out the pin connections in the 1965 Main Body Wiring Harness
Probably similar to other late model years, with exceptions for additional features in later years, such as "Park Brake Warning" light" etc.

Personally, I number them 11-16 on the left and 21-26 on the right (not shown) for less confusion when continuity testing.

I can't help but wonder why they didn't build this harness with pins matching either end, where possible?

I also "titles" this post as "MainBodyWiringHarness" because searching for multiple words gives too many irrelevant results, so to find this can search for "harness" or "WiringHarness" since "Wiring Harness" (with a space) results in every post with either word!
