Weird Stuff I Found in the Garage

[Rotary FP46]

Any thoughts on the loose clutch cover friction surface / iron insert, the orange bushings, or the K&N chemicals from 94)?

[Rotary FP46]

99) Door Hinges

Are these for an FC?

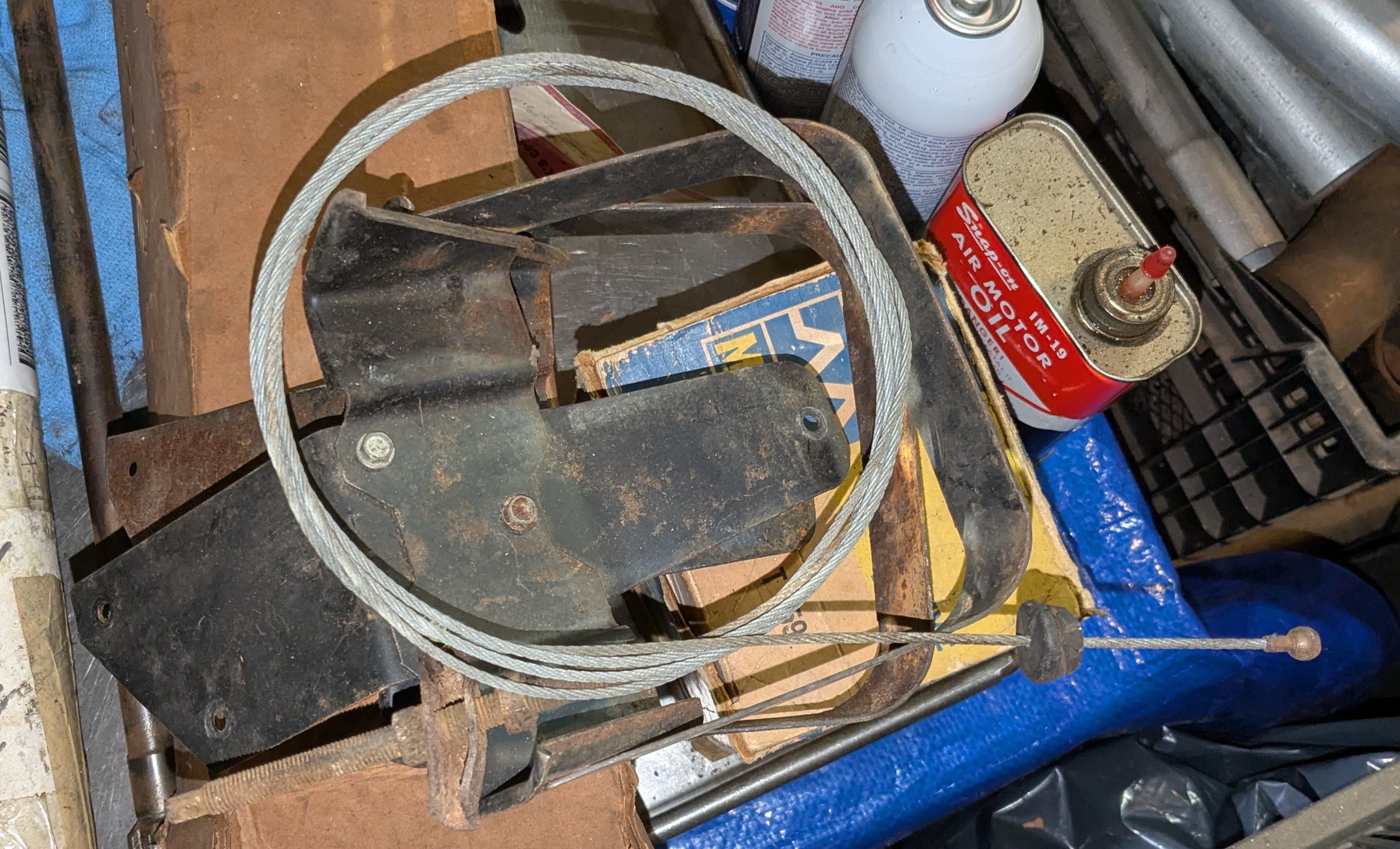

100) Cable Assembly

Is this for a parking brake?

[Rotary FP46]

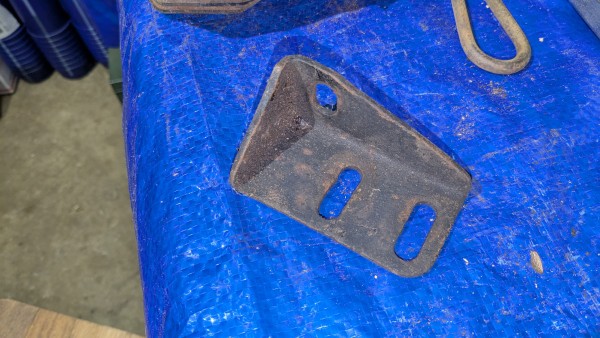

101) Brackets

Found these in one of the crates full of generators. I have (6) of the first, and (1) of the second.

Are these generator supports?

Victim #1:

Victim #2:

[66vairguy]

99) Door Hinges

Are these for an FC?


Door Hinges (Long) R1U2S0 01.jpg

I ANSWERED, BUT MY POST DISAPPEARED -- SEEMS TO BE A PROBLEM LATELY!!!!

Not a door hinge. It looks like a LM trunk lid hinge (maybe EM).

[vairmech]

The hinge is for a front deck lid, don't know if early or late.

[vairmech]

Victim 1 is a generator tail mount.

Victim 2 is a shift tube stabilizer mount for a 66-9 shifter. The 65 has a dimple for a ball swivel instead of just a hole.

[66vairguy]

Victim 1 is a generator tail mount.

Victim 2 is a shift tube stabilizer mount for a 66-9 shifter. The 65 has a dimple for a ball swivel instead of just a hole.

I agree, EXCEPT the 1965 had no adjustment for the rod at the bracket. The 66-69 got the swivel ball rod and of course the rod is shorter to fit the 66-69 "Saginaw" transmission support that was revised for the longer Saginaw. At least that is what the books say.

See pic - BOTTOM is longer 65 rod with simple flange and nut (you had to bend rod to line up shifter tube with transmission - not the best process at the factory.
TOP has swivel shoulder on bracket to move shorter rod before the nut is tightened.

[Frank DuVal]

99 is the left hood hinge for a 65 to 69 car (the springs ride in that roller and are inboard of the hinge). If it looks aluminum or pot metal cast it is 65 to 66. The later ones seem more steel.

Early hood hinges are pressed steel, U shaped in the cross section.

[Rotary FP46]

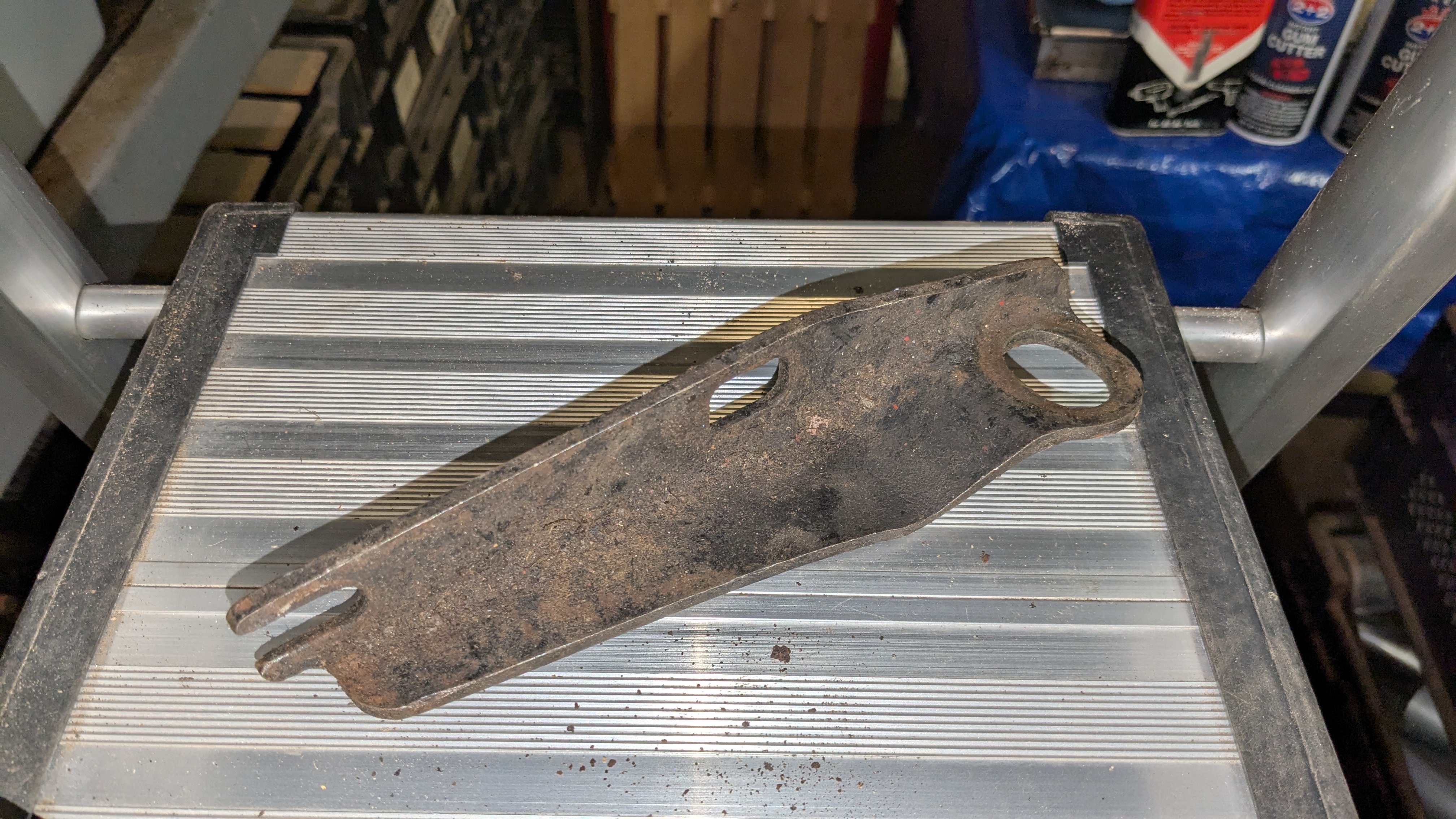

102) Another Bracket

Looks sort of like the generator bracket above, but longer and with allowance for a third fastener.

103) Formed Steel Line

Photographing this was a bit weird. Had to leave a bunch of items in the shot to provide a sense of scale. Not sure whether it is Corvair or something V8. Is it familiar to any of you?

104) EM Dash Panel

I can see that it has a PG shifter built in, but don't know whether it came out of a car or out of a truck - or what year.

105 and 106) EM Dash Panels

Spyder dashes, I'm assuming. Not sure whether there were minute differences from year to year, or where these fall along that timeline.

107) Accessory Pod?

[vairchet]

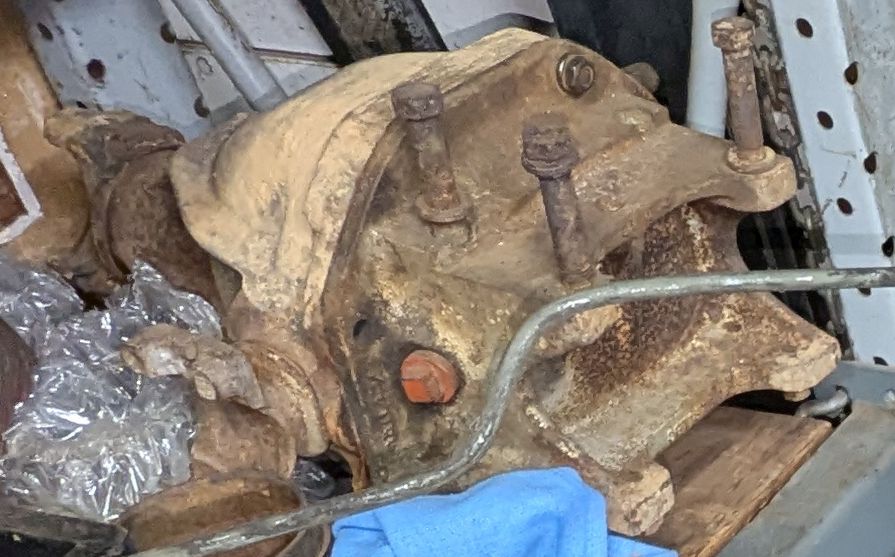

Differential appears to be '65 (possibly '64) and later Corvette:

Photo taken from Forum

[Rotary FP46]

108) Worn Metallic Brake Shoes

These don't look quite like the Velvetouch shoes that are here. Not sure I've seen photos of this lining pattern in my travels.

109) LM Front Spindles

Was there any variation in LM front spindles?

[SpyderMan]

104 is a 60 dash

105 the 62 Spyder dashes had concave lenses for the gauges and the brushed finishes is slightly different. I would guess that the top one is a 62 and the lower is a 63-64.

[Rotary FP46]

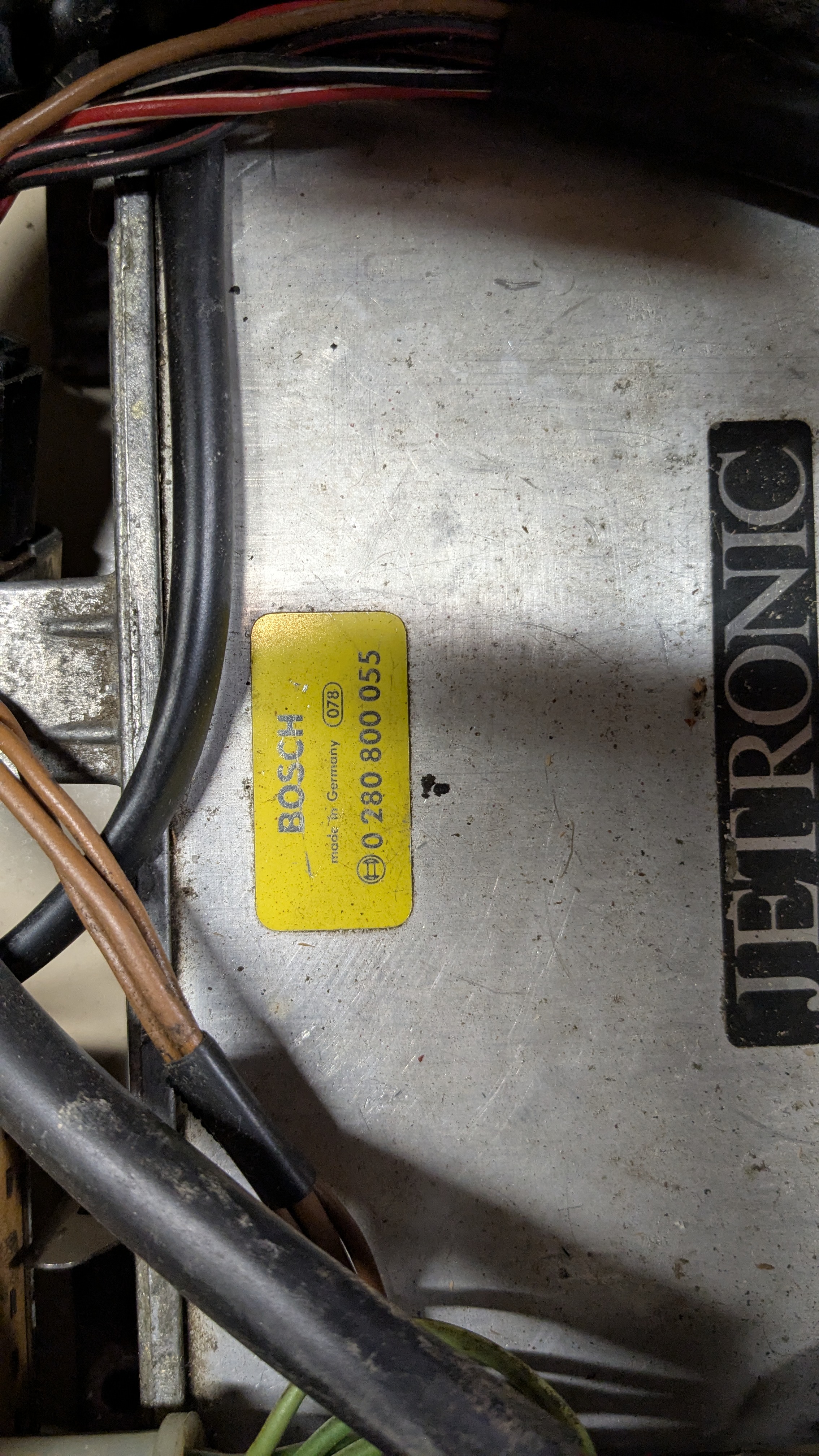

110) Porsche Induction System

Not sure what to make of this being here.

Has anyone ever adapted a Bosch K-Jetronic fuel injection system to a Corvair?

[Frank DuVal]

I do not recall #103 on any Corvair, as it looks larger in diameter than the 1/4" front to rear brake line on some models. Of course then there are the FCs.... But I still don't think they use larger than 1/4" (OD) on any brake lines.

[Rotary FP46]

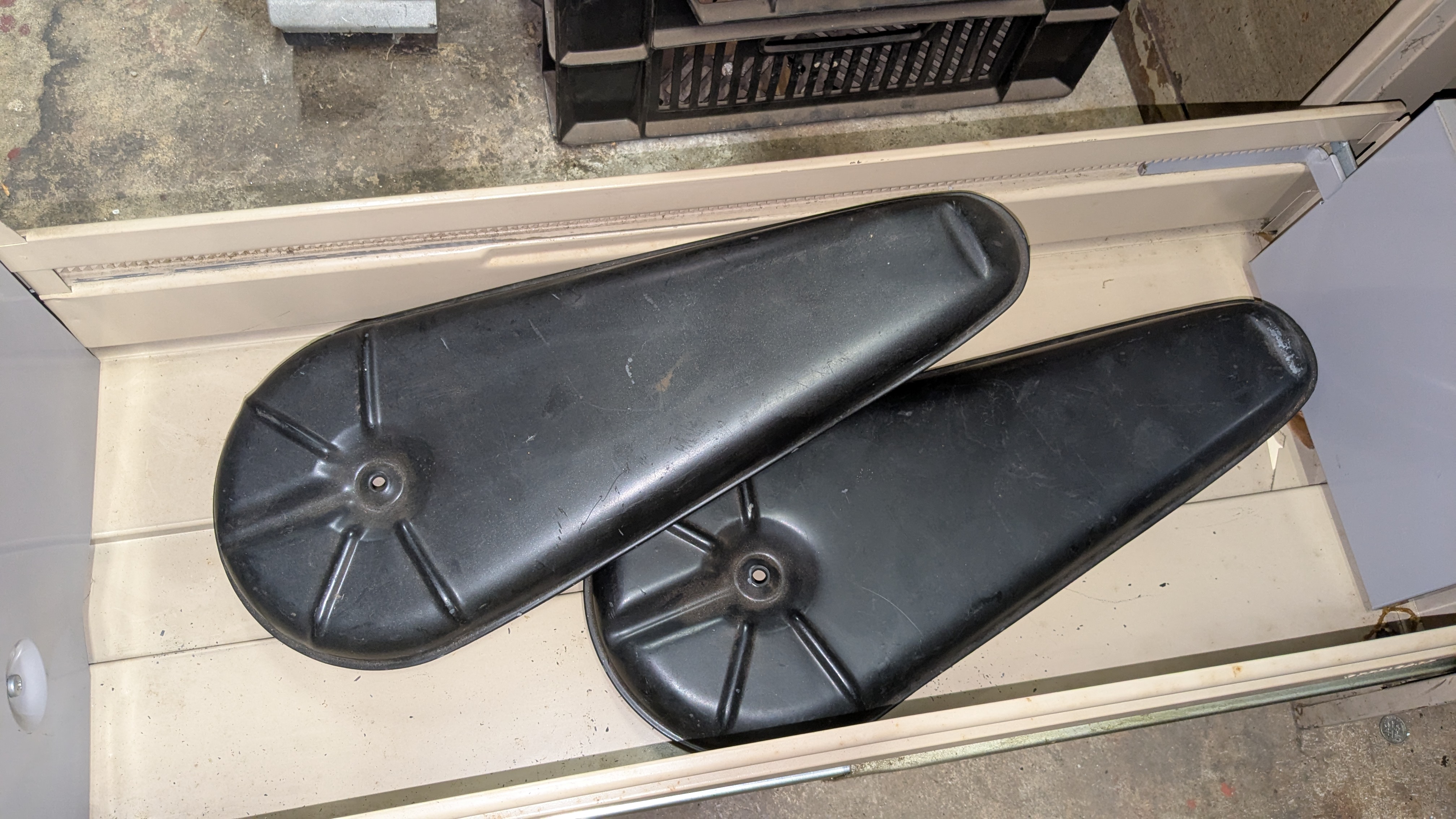

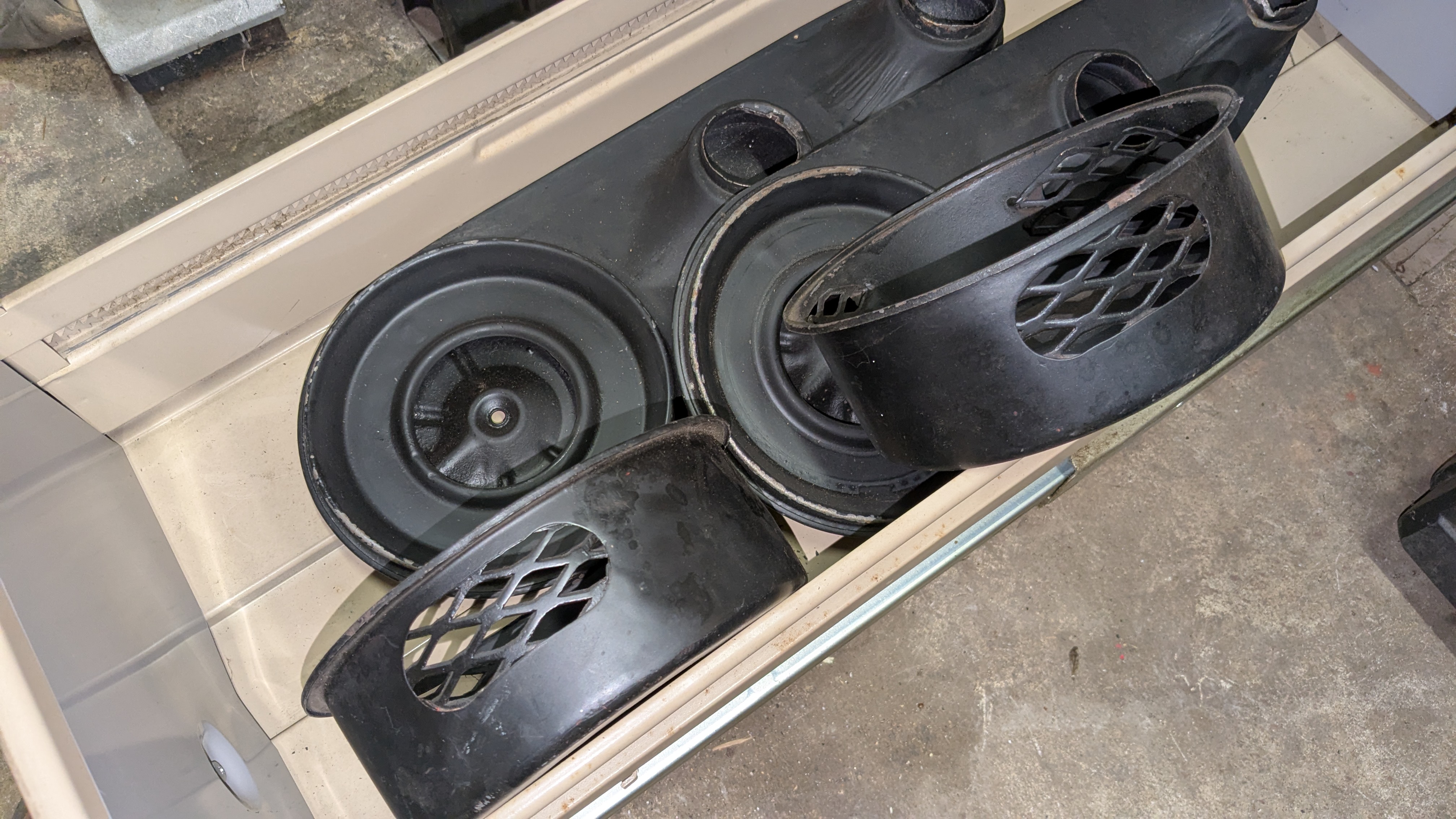

111) Odd Air Cleaner Assemblies

Found in the last uncatalogued file cabinet. Filter housings are vented. Not sure whether this was a commercial product, or something homegrown. I know my father did not make the modifications.

[jimbrandberg]

The odd air cleaners are highly coveted to work on a 140 in a FC or Lakewood with low clearance. It takes a lot of work to fabricate them.

I don't see what you mean about pressure plate friction surfaces. The heavier ones are also made out of better nodular cast iron.
