Wiring issue

[KulasO313]

Hey, just wondering if anyone out there has a clear wiring diagram for the wiring that runs into the engine compartment. I have the loom that contains all the wiring for tail lights, alternator, starter, coil, etc... But the previous owner kinda ripped and cut wires so not quite sure where everything goes. So any pics, diagrams or info would be very appreciated. Thanks guys. Oh, it's a 67' corvair.

[terribleted]

There is a diagram in the GM shop manual. If you do not have a shop manual it should be one of your first purchases....lots of data in them. For a 67 you buy the 65 main book and 67 supplement to have full coverage. That being said perhaps for now, someone may be able to post a diagram for you or a link to an online one.

[bbodie52]

The schematic diagrams below and the wiring harness illustrations may be of some help. All were extracted from the 1965 Corvair Chassis Shop Manual, The 1965 Corvair Assembly Manual, etc. These manuals can be downloaded at no cost using the link shown at the bottom of this posting.

Please let us know if you develop any specific questions in interpreting the diagrams, so that we can help you to sort through your wiring issues.

Left-click on each image to enlarge for better viewing...

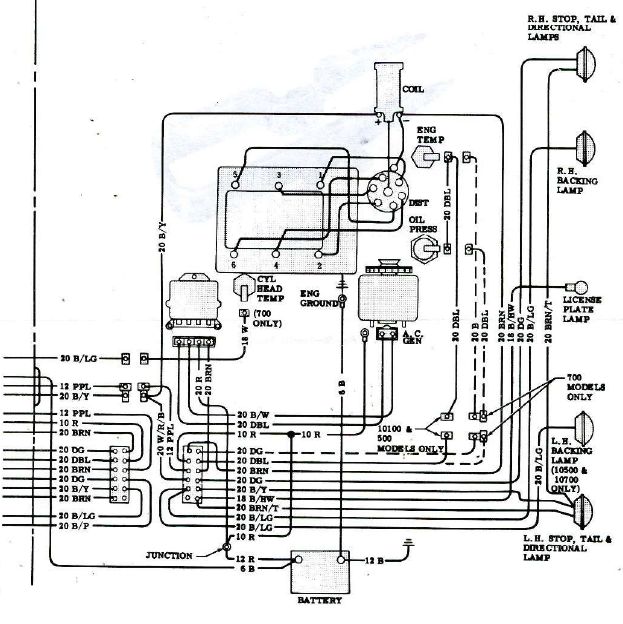

1965-1969 Corvair Engine Compartment Wiring Diagram

Wiring color Code

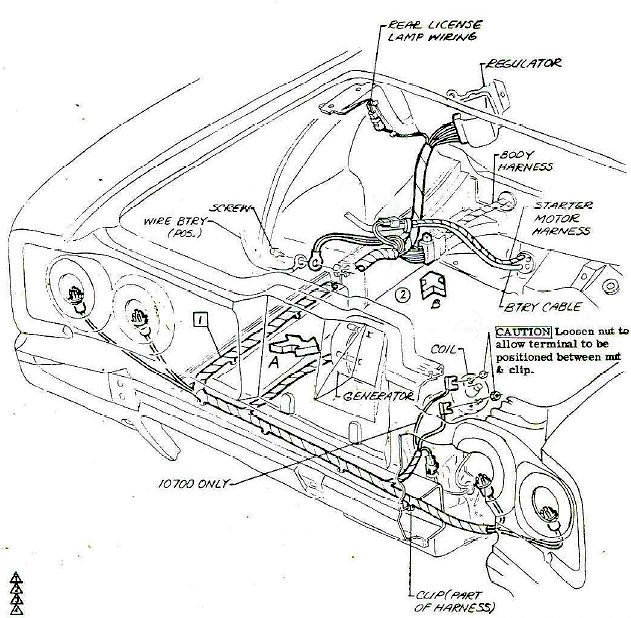

1965-1969 Corvair Engine Compartment Wiring Harness

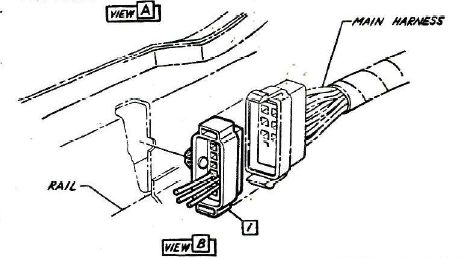

1965-1969 Corvair Engine Compartment Wiring Harness Multi-pin Connector

1965-1969 Corvair Engine Compartment Wiring Harness Multi-pin Connector.jpg (33.79 KiB) Viewed 315 times

1965-1969 Corvair Engine Compartment Wiring Harness Segment - Multi-pin Connector

1965-1969 Corvair Engine Compartment Wiring Harness Segment - Multi-pin Connector.jpg (34.19 KiB) Viewed 315 times

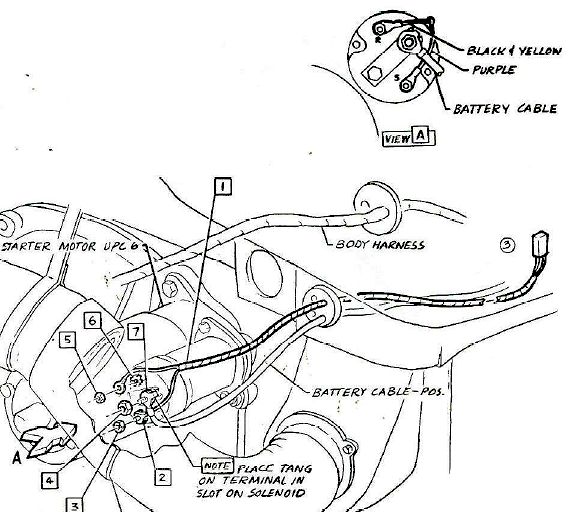

1965-1969 Corvair Engine Compartment Wiring Harness Starter Connections

1965-1969 Corvair Engine Compartment Wiring Harness Starter Connections.jpg (80.88 KiB) Viewed 315 times

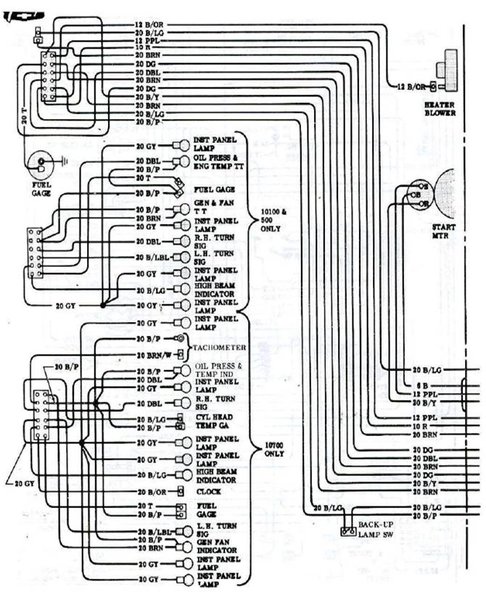

1965-1969 Corvair - Instrument Cluster and Body Harness

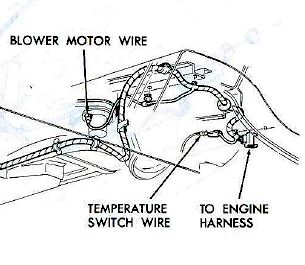

1965 Instrument Panel Compartment Wiring Harness

1965 Instrument Panel Compartment Wiring Harness.jpg (58.26 KiB) Viewed 315 times

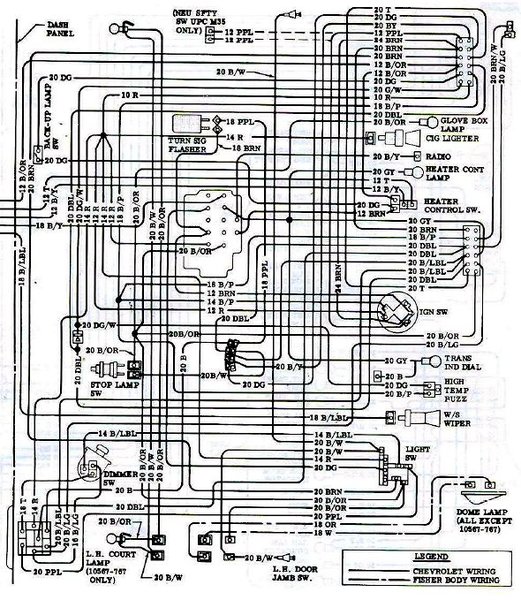

1965-1969 Corvair Interior Compartment Wiring Diagram

This link will provide you with useful links on the Internet. You can download shop manuals and many other technical references in Adobe Reader (.pdf) format at no cost, and these should help you with troubleshooting and tuning your Corvair.

The following Corvair Forum link can provide you with a list of useful websites that should be helpful as a Corvair owner...

Common and Useful Corvair Websites
Corvair Forum viewtopic.php?f=225&t=6007
